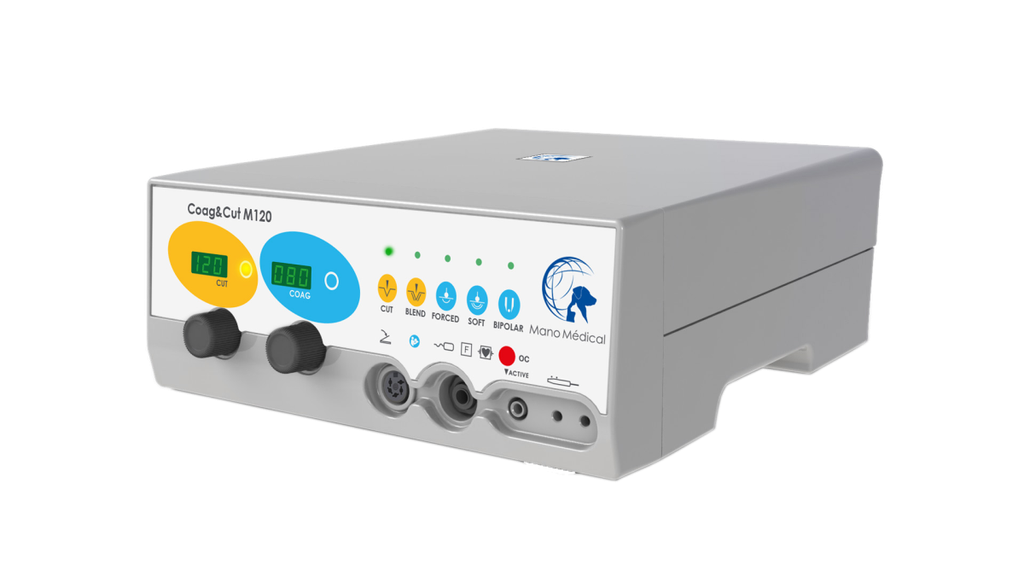

The Coag&Cut M120 is a compact, high-precision electrosurgical unit developed by Mano Médical, designed to support a wide range of general surgical procedures in both monopolar and bipolar modes. Ideal for veterinary and outpatient use, it delivers clean cutting and controlled coagulation with safety and reliability.
Key Features:
🔹 Dual Mode Operation – Supports both monopolar and bipolar applications for enhanced procedural flexibility.
🔹 Five Operating Modes:
• CUT – Pure cutting for sharp incisions
• BLEND – Cut with simultaneous hemostasis
• FORCED COAG – Superficial coagulation
• SOFT COAG – Deep, gentle coagulation
• BIPOLAR – Precision coagulation without dispersion
🔹 Microprocessor-Controlled – Ensures consistent energy delivery and internal system monitoring.
🔹 User-Friendly Controls – Digital display with adjustable power settings and mode indicators.
🔹 Safety Mechanisms – Real-time monitoring of return electrode and output control to avoid thermal injury.
🔹 Compact & Portable – Lightweight (5 kg) with a small footprint, perfect for mobile or small-clinic setups.
Technical Specifications:
-
Max Power Output:
• CUT: 120W @ 250Ω
• BLEND: 90W @ 200Ω
• FORCED: 80W @ 150Ω
• SOFT: 60W @ 100Ω
• BIPOLAR: 40W @ 100Ω - Working Frequency: 600 kHz
- Dimensions: 25 × 10 × 29 cm
- Weight: 5 kg
- Power Supply: 230V, 50–60 Hz, 300 VA
- Compliance: CE Marked – Class IIb Medical Device (MDD 93/42/EEC)
Included Accessories:
✔ Monopolar handpiece with blade
✔ Full set of autoclavable electrodes (needles, loops, balls)
✔ Bipolar forceps with cable
✔ Neutral return plate with cable
✔ Footswitch
