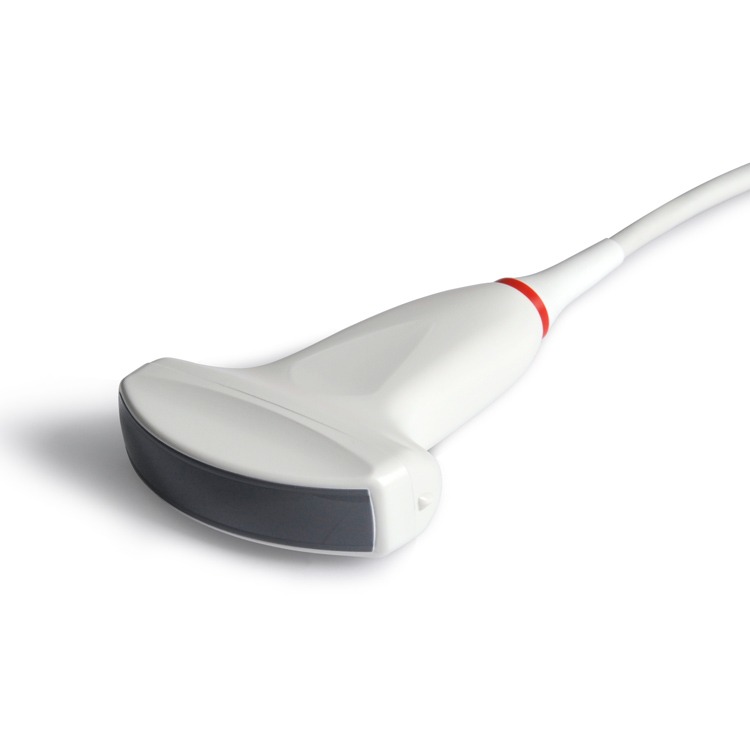

The SonoScape 3C-A is a high-performance convex array ultrasound probe designed for comprehensive general imaging. With broad frequency capabilities and superior image resolution, it supports a range of clinical applications including abdominal, OB/GYN, and urology examinations. Its ergonomic design and compatibility with a wide selection of SonoScape ultrasound systems make it an essential tool in any diagnostic environment.
Clinical Applications:
✔ Abdominal Imaging
✔ Obstetrics & Gynecology
✔ Urology
✔ General Pelvic & Organ Scanning
Key Features:
🔹 Wide Frequency Range (1.0–7.0 MHz) – Enables both deep and superficial scanning with excellent image clarity.
🔹 Center Frequency: 3.2 MHz – Provides a balanced resolution and penetration depth for routine clinical use.
🔹 70° Field of View – Ideal for broad anatomical overviews and detailed assessments.
🔹 Compact Footprint (55 x 14 mm) – Offers improved patient contact and maneuverability.
🔹 Biopsy Guide Compatible – Suitable for interventional procedures with optional biopsy attachments.
🔹 Multi-System Compatibility – Works with SonoScape systems such as P9, P15, P20, P25, S50, S60, X5, and more.
Technical Specifications:
- Probe Type: Convex array
- Frequency Bandwidth: 1.0 – 7.0 MHz
- Center Frequency: 3.2 MHz
- Elements: 128
- Radius: 50 mm
- Field of View: 70°
- Imaging Depth: 4 – 400 mm
- Connector Type: Standard SonoScape probe interface
Ergonomics & Hygiene:
✔ Lightweight and easy to handle during long procedures
✔ Autoclavable biopsy guide support
✔ Sealed and smooth design for easy disinfection
