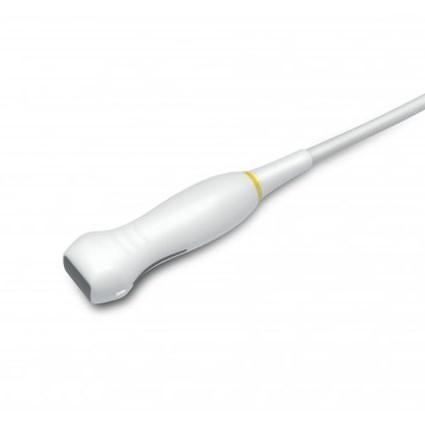

The SonoScape 7P-A is a high-frequency phased array ultrasound transducer specifically designed for delicate and detailed imaging in pediatric and neonatal patients. With a compact footprint and wide frequency range, it offers exceptional resolution and penetration—ideal for cardiac, cranial, and small thoracic assessments.
Clinical Applications:
✔ Pediatric Echocardiography
✔ Neonatal Cranial Ultrasound
✔ Small Thoracic and Transcranial Imaging
Key Features:
🔹 Broad Frequency Range (2.0 – 9.0 MHz) – Ensures high-resolution imaging with adjustable depth for versatile use.
🔹 Compact Footprint (21 x 11 mm) – Ideal for neonatal and pediatric scanning where space is limited.
🔹 Wide Field of View (90°) – Enhances structural visualization during echocardiographic and cranial scans.
🔹 High Element Count (96 Elements) – Delivers superior spatial resolution and image clarity.
🔹 Lightweight and Ergonomic Design – Minimizes operator fatigue and enhances scanning precision.
🔹 Compatible Systems – Fully supported by SonoScape’s premium imaging platforms such as the P40, P50, and P60.
Technical Specifications:
- Probe Type: Phased Array
- Frequency Bandwidth: 2.0 – 9.0 MHz
- Center Frequency: 4.5 MHz
- Field of View: 90°
- Footprint: 21 mm × 11 mm
- Imaging Depth: 3 – 300 mm
- Number of Elements: 96
- Biopsy Guide: Not applicable
