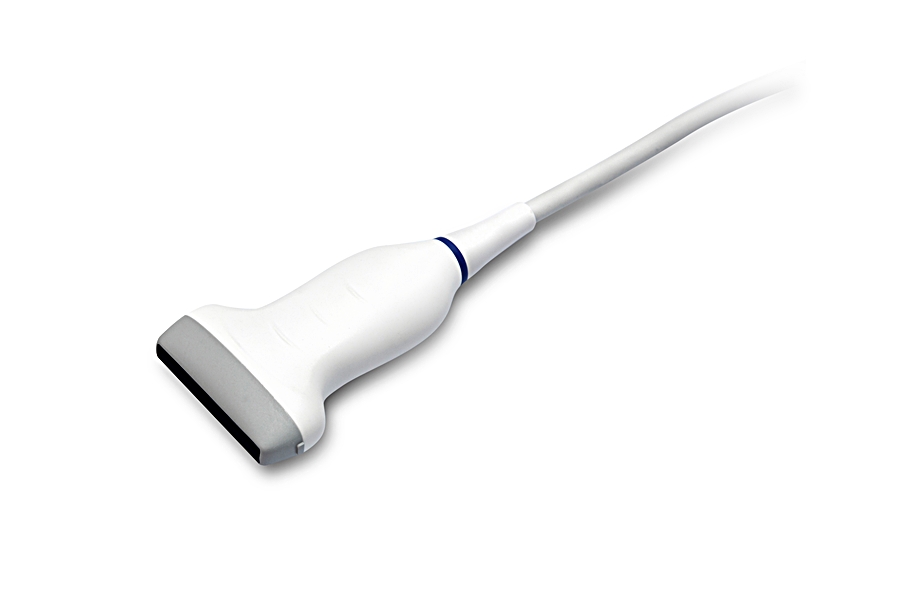

The SonoScape 12L-A is a premium linear array ultrasound transducer designed to deliver superior image clarity and diagnostic confidence across a wide range of superficial and vascular applications. Engineered for compatibility with SonoScape’s advanced imaging systems, this probe offers exceptional versatility, ergonomic handling, and outstanding spatial resolution.
Indications:
✔️ Optimized for Superficial & Vascular Imaging:
- Musculoskeletal (MSK) and sports medicine
- Small parts (e.g., thyroid, breast, scrotum)
- Superficial vascular structures
- Peripheral nerve blocks
- Guiding minimally invasive procedures (e.g., biopsies, injections)
Key Features:
🔹 Wide Frequency Range (3.0–17.0 MHz) – Allows for deep and shallow penetration with excellent image detail.
🔹 High-Density 256-Element Array – Enhances resolution for accurate structure visualization.
🔹 Compact Footprint (55 x 8 mm) – Enables easy access to narrow and small anatomical zones.
🔹 Biopsy Guide Compatible – Supports interventional procedures with enhanced precision.
🔹 Ergonomic & Lightweight Design – Reduces user fatigue during extended scanning sessions.
🔹 Field of View: 52 mm – Wide imaging area to support fast and complete assessments.
🔹 Compatible Systems – Fully supported on SonoScape P-series and S-series consoles (S50, S60, P15, P25, P40, P50, P60).
Technical Specifications:
- Center Frequency: 7.5 MHz
- Frequency Bandwidth: 3.0 – 17.0 MHz
- Number of Elements: 256
- Footprint: 55 mm x 8 mm
- Imaging Depth: 2–100 mm
- Connector Type: Standard SonoScape linear probe connector
Usage & Maintenance:
Clean after each use with approved ultrasound probe disinfectant. Avoid mechanical stress on the cable and store in a protective holder or dedicated case when not in use.
