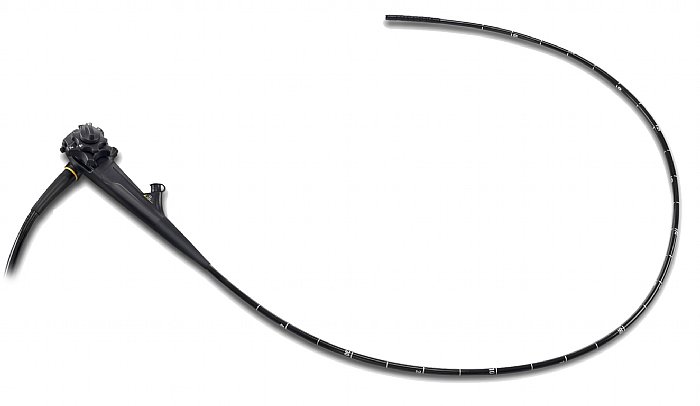

The SonoScape V-10M is a high-quality, flexible veterinary endoscope engineered to deliver precise visualization of internal structures in medium to large animals. With a slim 9.0 mm insertion tube and a 2.8 mm working channel, the V-10M is ideal for a wide range of diagnostic and therapeutic procedures including gastroscopy, bronchoscopy, and colonoscopy. Its ergonomic design, high-resolution optics, and compatibility with the SonoScape V-Series video processors make it a powerful tool in modern veterinary endoscopy.
Key Specifications:
🔹 Insertion Tube Diameter: 9.0 mm
🔹 Working Length: 1,500 mm
🔹 Biopsy Channel Diameter: 2.8 mm (supports instruments up to 2.5 mm)
🔹 Field of View: 145°
🔹 Depth of Field: 2–100 mm
🔹 Angulation Range:
• Up/Down: 210° / 90°
• Left/Right: 120° / 120°
🔹 Water Jet Function: Forward flushing nozzle for mucosal cleaning
🔹 One-Step Connector: Simplifies setup and protects against fluid ingress
🔹 Waterproof Design: Allows full submersion for disinfection
🔹 Ergonomic Control Handle: Lightweight and designed for operator comfort
Clinical Applications:
✔ Gastrointestinal procedures (gastroscopy, colonoscopy)
✔ Respiratory tract imaging (bronchoscopy)
✔ Urinary tract exams (cystoscopy)
✔ General diagnostic and interventional endoscopy in small and large animals
